Well pumps · Elgin & Middlesex
Well pump
service& install.
Jet pumps, submersible pumps, pressure tanks, constant-pressure controllers. Sourced through Noble Trade. Quoted plumber-direct for rural Elgin County and Middlesex households.
What I do on wells
The six common
well-house jobs.
Most rural Elgin County wells run the same handful of failures. Below are the jobs I quote weekly. Final install price depends on well depth, existing wiring, and access — quoted on-site after a free phone diagnostic.
Jet pump replacement (shallow well)
Above-ground jet pump for wells under 25 ft. Diagnose, drain, swap, prime, pressure-test.
$1,450 – $1,750
Most common rural Elgin County job.
Submersible pump pull & replace (to 150 ft)
Deep-well submersible swap. Pull existing pump + drop pipe, install new pump, splice & test.
$2,400 – $3,200
Add ~$800-$1,300 for 150-250 ft sand-prone wells (Tri-Seal class pump).
Pressure tank swap (20-44 gal)
Old waterlogged tank replaced with steel or composite bladder tank. Includes tee + gauge + new fittings.
$750 – $1,250
Composite tanks ($1,000+) last 30 yrs vs 12 for steel — best lifetime value.
Constant-pressure upgrade (VFD)
Franklin SubDrive Connect variable-frequency controller. City-pressure feel on a well. Quieter pump, longer life.
$2,800 – $3,600
Fixes the 'shower drops when toilet flushes' rural classic.
Booster pump (low city pressure)
City pressure too low at upstairs fixtures? Goulds AquaBoost II inline booster bumps whole-house pressure cleanly.
$1,900 – $2,600
Common in older homes on the city's edge.
Service call / diagnostic
No water at the tap? Lightning-blown control box? On-site diagnostic and quote for repair or replacement.
$165 – $220 flat
Waived when work proceeds same-day. Water-test fee (~$60-$90) at cost.
All ranges installed, in CAD, plus HST. Rural Elgin County wells typically run 80-220 ft deep on bedrock aquifer — the 4″ submersible is the workhorse, with iron-tolerant Tri-Seal pumps earning their price on heavily-fouled wells.
Featured pumps
Real brands.
Real model numbers.

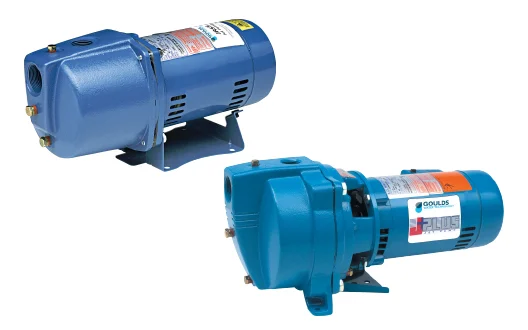

Goulds (Xylem)
J5S — JS+ Series
1/2 HP, 16.5 GPM @ 5' / 30 psi. Cast-iron body, 115/230V. The default rural-Elgin-County shallow-well swap.
$1,450 – $1,750 installed
Goulds (Xylem)
J10S
1 HP, ~23 GPM. Step up from J5S when irrigation or multiple bathrooms tax the pump.
$1,700 – $2,000 installed
Goulds (Xylem)
7GS05412CL — GS Series
7 GPM (1.5-11 range), 10-stage, 230V 3-wire. Fits 80-150 ft drilled wells. Standard sub-pump swap.
$2,400 – $3,200 installed

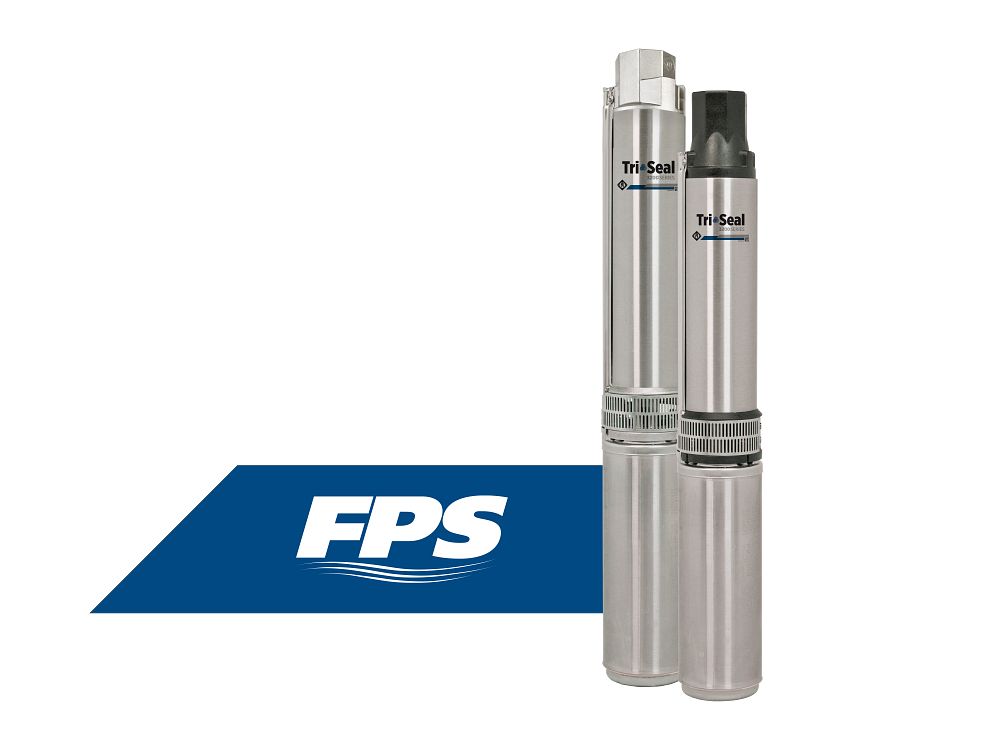

Franklin Electric
FPS 3200 Series
1 HP, 10 GPM. Tight-well-diameter design. Best fit for narrow rural wells where a Goulds GS won't drop.
$2,800 – $3,600 installed

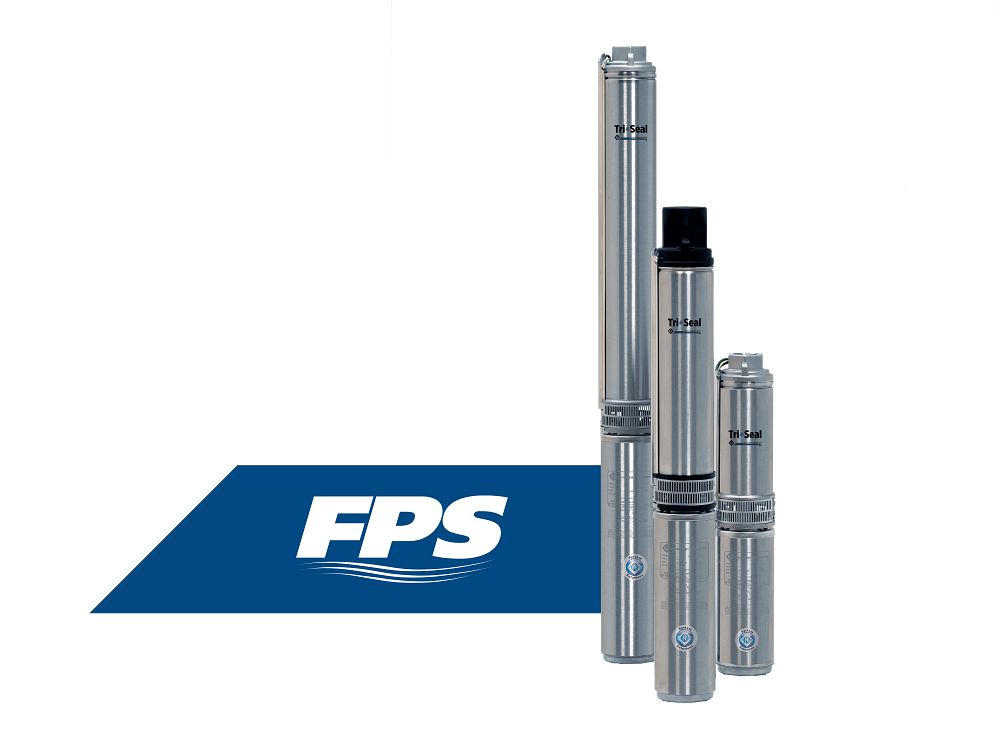

Franklin Electric
FPS Tri-Seal
1.5 HP, 15 GPM. Floating-stage, abrasion-resistant build. Wins on iron-heavy Elgin County wells.
$3,400 – $4,500 installed

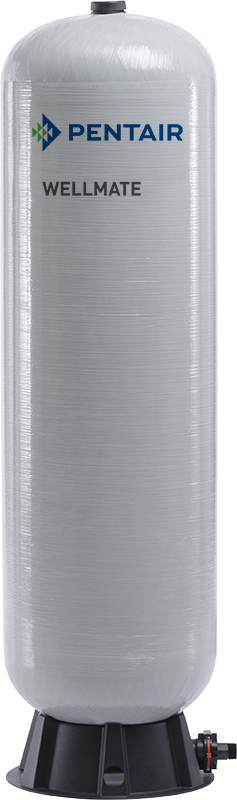

Goulds / Wellmate
HydroPro V100 / WM-12 composite tank
44 gal nominal, butyl bladder, composite shell — won't rust. 30-yr life vs ~12 for steel.
$1,000 – $1,250 installed

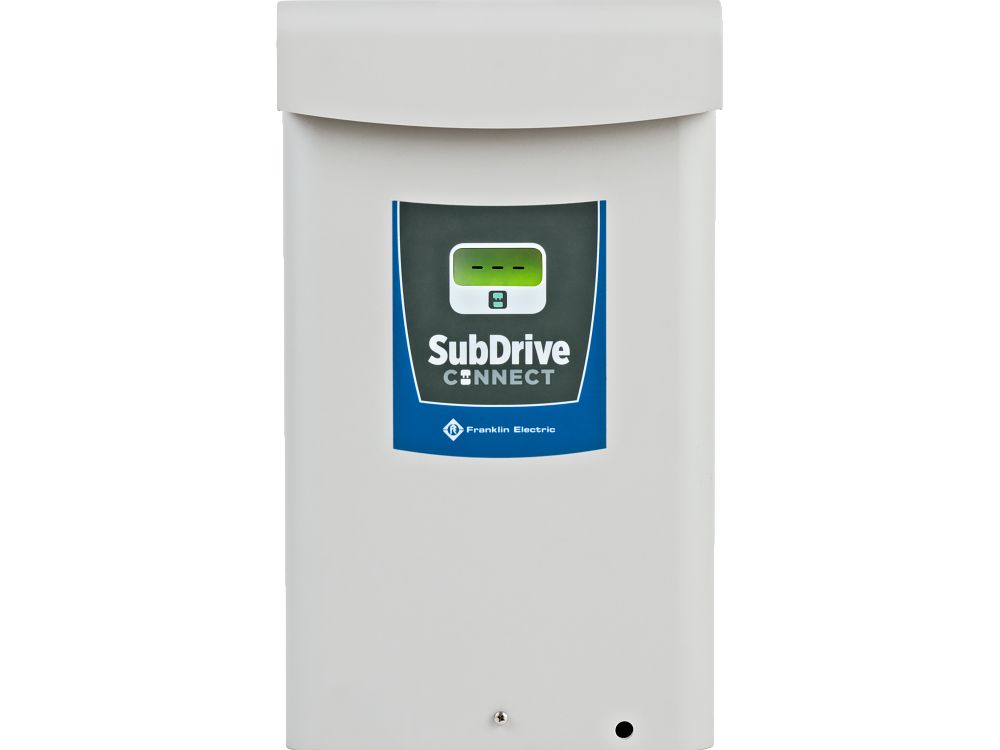

Franklin Electric
SubDrive Connect VFD
Up to 5 HP, works on sub + above-ground pumps. App-controlled. Fixes the 'shower drops when toilet flushes' complaint.
$2,800 – $3,600 installed
Goulds (Xylem)
ResiBoost
Variable-speed packaged booster, 20-80 psi adjustable. For older homes where upstairs taps trickle.
$1,900 – $2,600 installed
